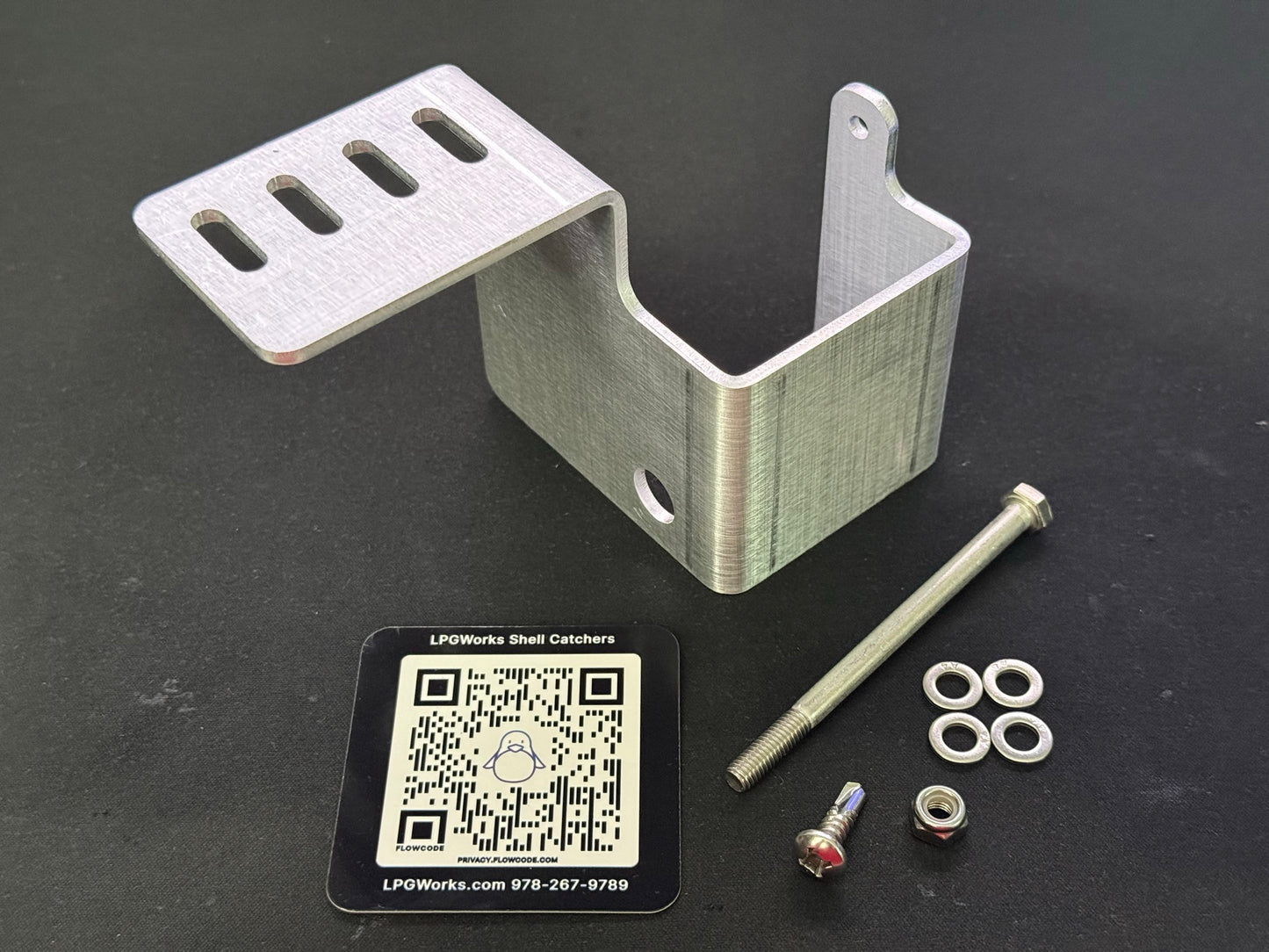

Transom Mounted Transducer Bracket for Seadoo Fishpro Sport / Trophy

This bracket will allow you use your transom bracket along with your transducer without having to drill any holes into your hull. This was designed for the Fishpro Sport and Trophy that have the rear deck extension installed and will also work with any ST3 hull with the rear deck extension such as the GTX, RXT.

Made in the USA from 5053 Aluminum and designed to use the existing mounting hole that is on the rear deck extension and one self-tapping screw. Comes with stainless steel hardware.

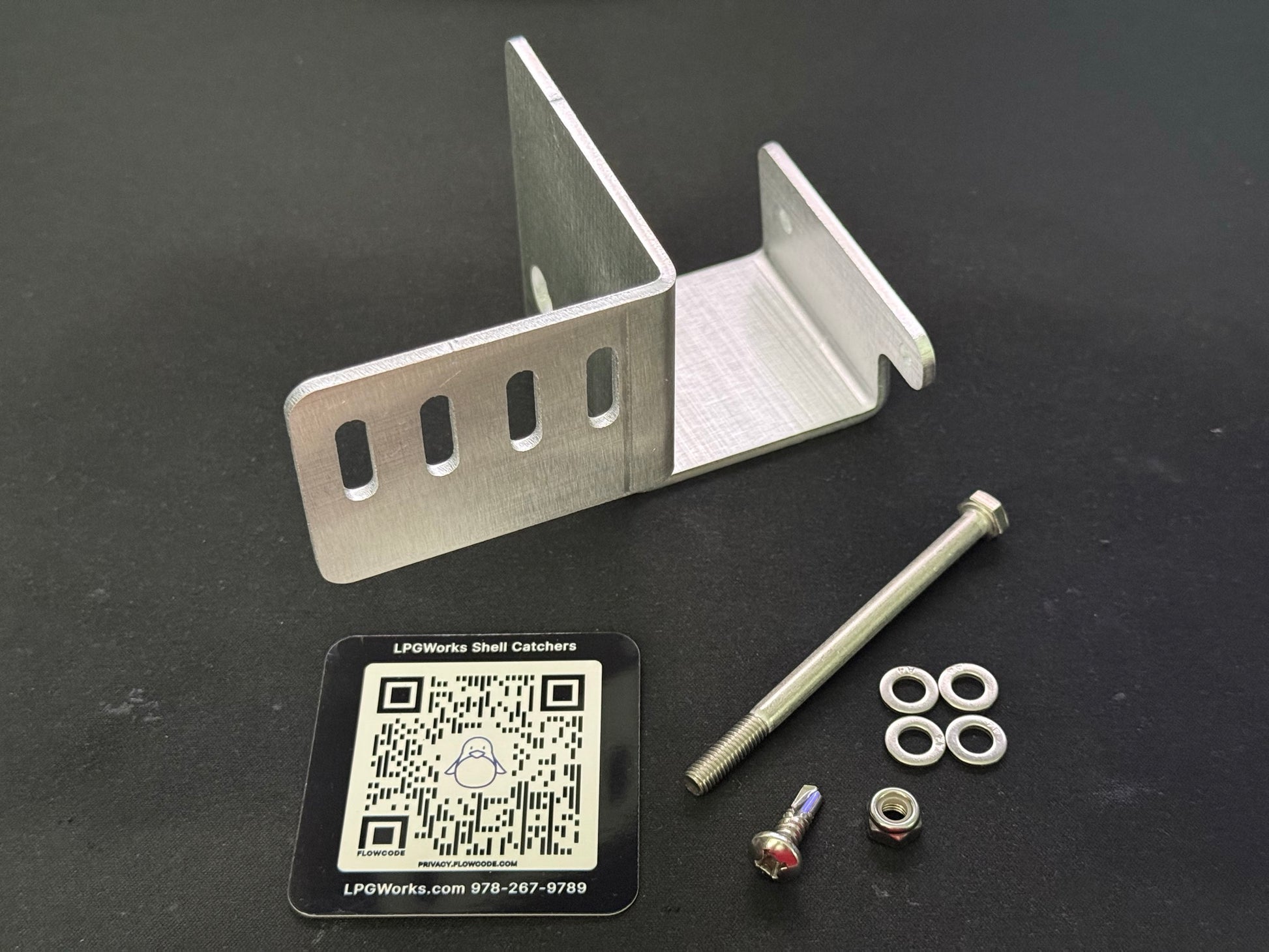

Included Hardware

1- Bolt
1 - Locking Nut
4 - Washers
1 - Self-Tapping Screw

Installation Instructions

1. Remove the existing bolt, washers and locking nut using a 10mm socket and wrench.
2. Place 1 washer on the bolt and insert bolt through the bracket.

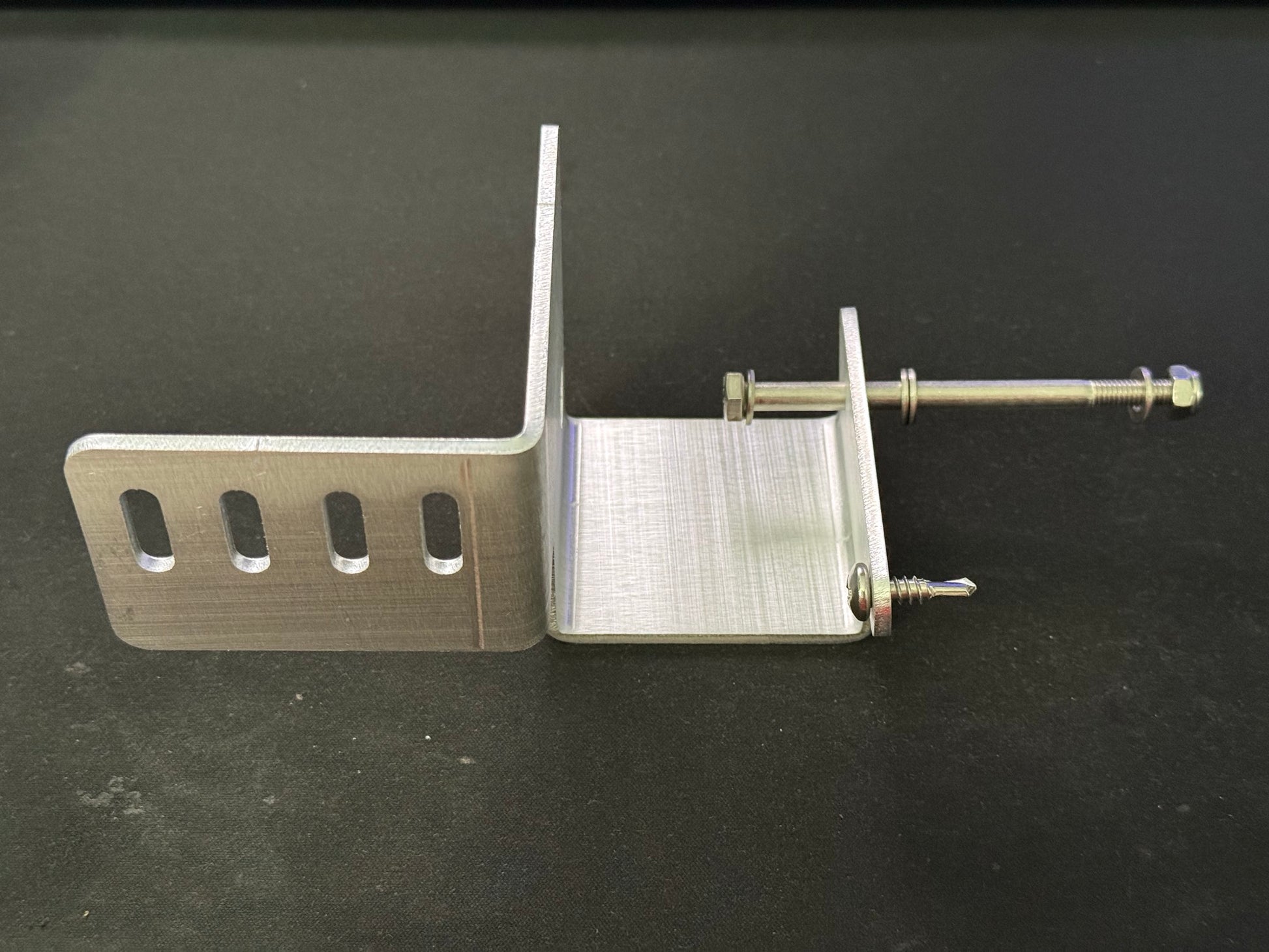

3. Place 2 washers on the bolt so that you have bolt - washer - bracket - washer washer. See attached photo.
4. Line up the bolt and bracket with the hole where you removed the bolt in Step 1 and insert bolt through. It is easier to start above the hull extension fin to get a good angle to insert the bolt.
5. Place a washer on the end of the bolt and lock nut.
6. Snug up the bolt but make sure you can still slightly move the bracket up and down to adjust the angle. It is recommended that you mount the transom mounted transducer so ensure that it is leveled before moving to the next step.

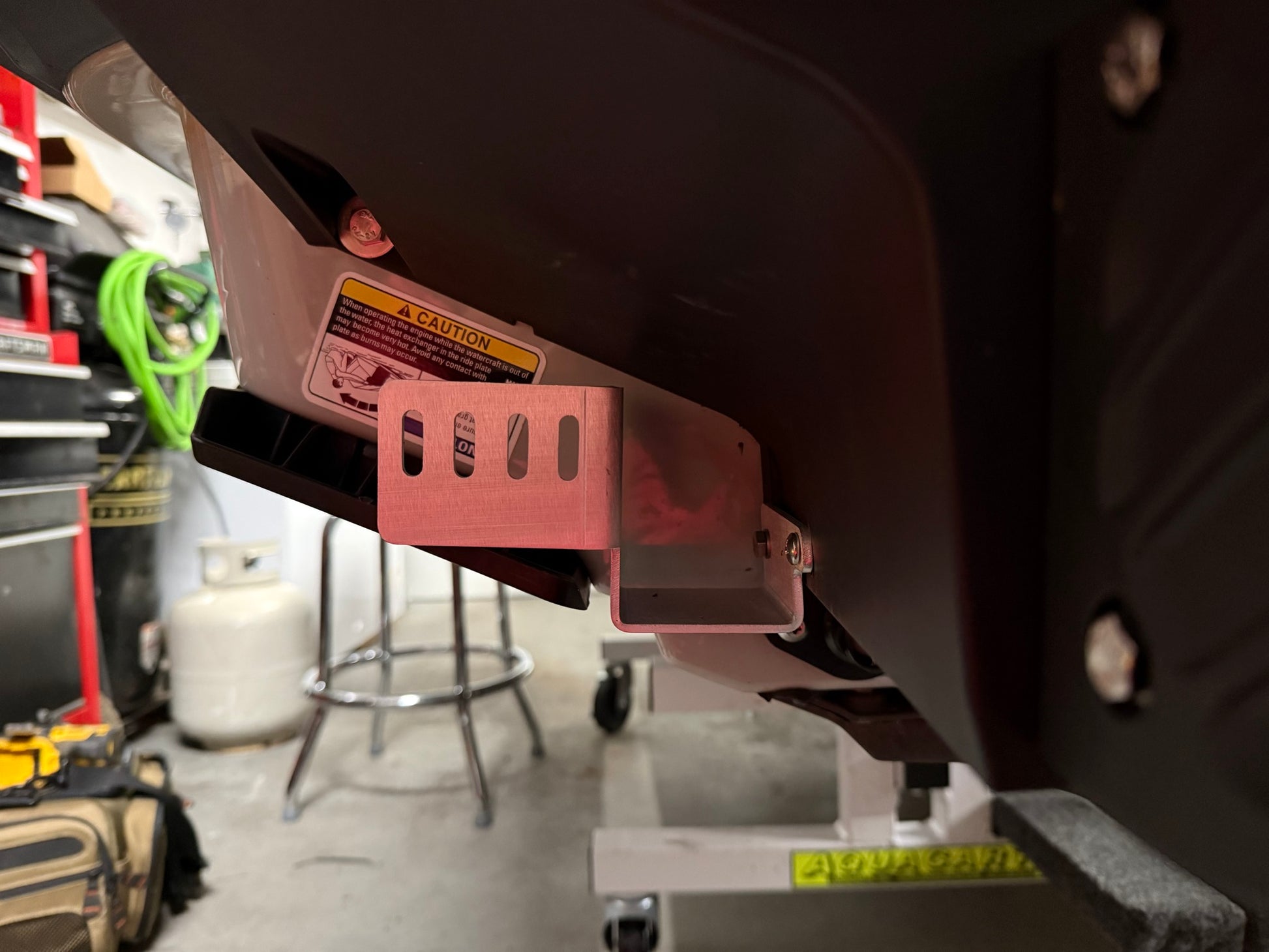

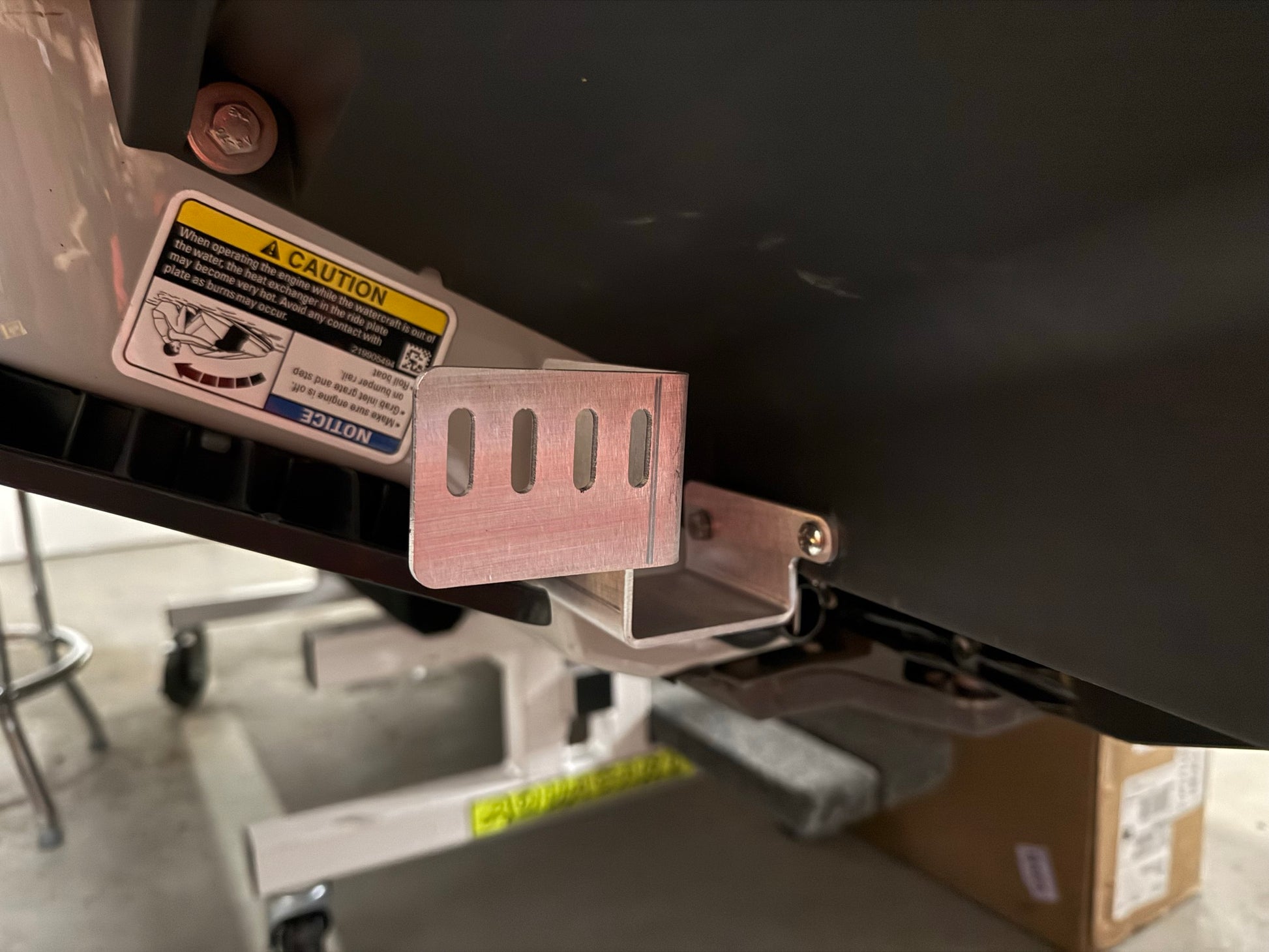

7. Once the transducer is leveled, use the self-tapping screw to secure the bracket to the rear deck.
8. Tighten up the bolt and the installation is completed.

Download Installation Instructions
