Extended VTS Ramp Kit for Seado Spark (14-16)

This kit was made and tested on my 2015 Seadoo Spark. It increases the angle of the VTS without causing any issues and allows you to have similar range to a Trixx. Works on both 2up or 3up models. Made for 2014-2016 Seadoo Spark.

Requirements: Existing Seadoo VTS Kit P/N 295100704 or piece your own kit together like I did. I found the following parts and saved some $$.

• VTS Switch - 278002604
• VTS Wiring - 278003195
• VTS Module - 278002440
• VTS Cover - Unknown P/N Found mine used on eBay.

Installation:

• Remove the 3 13mm bolts to remove your reverse bucket.
• Remove the 2 factory bolts and lock nuts for each side.

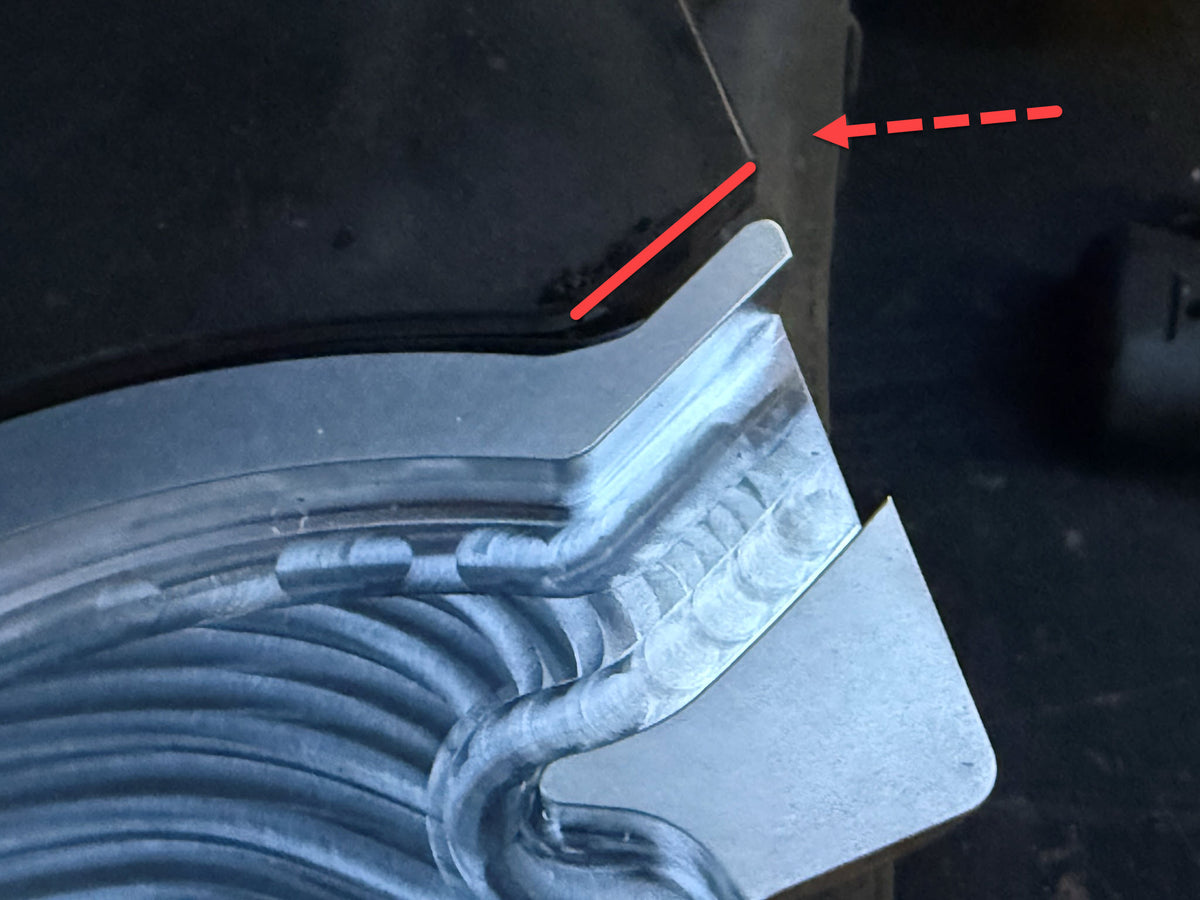

• You will need to trim a little so the ramp can fit. It doesn't need to be exact.

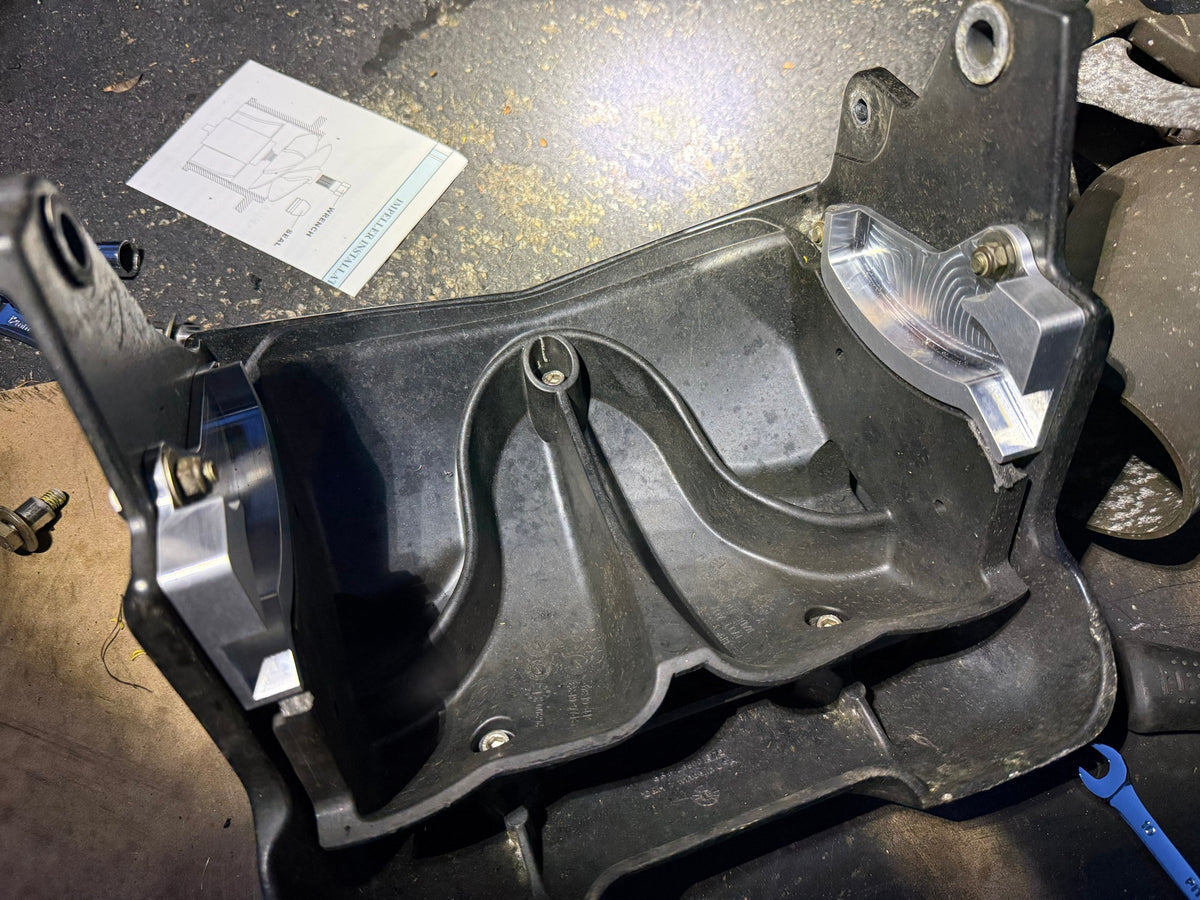

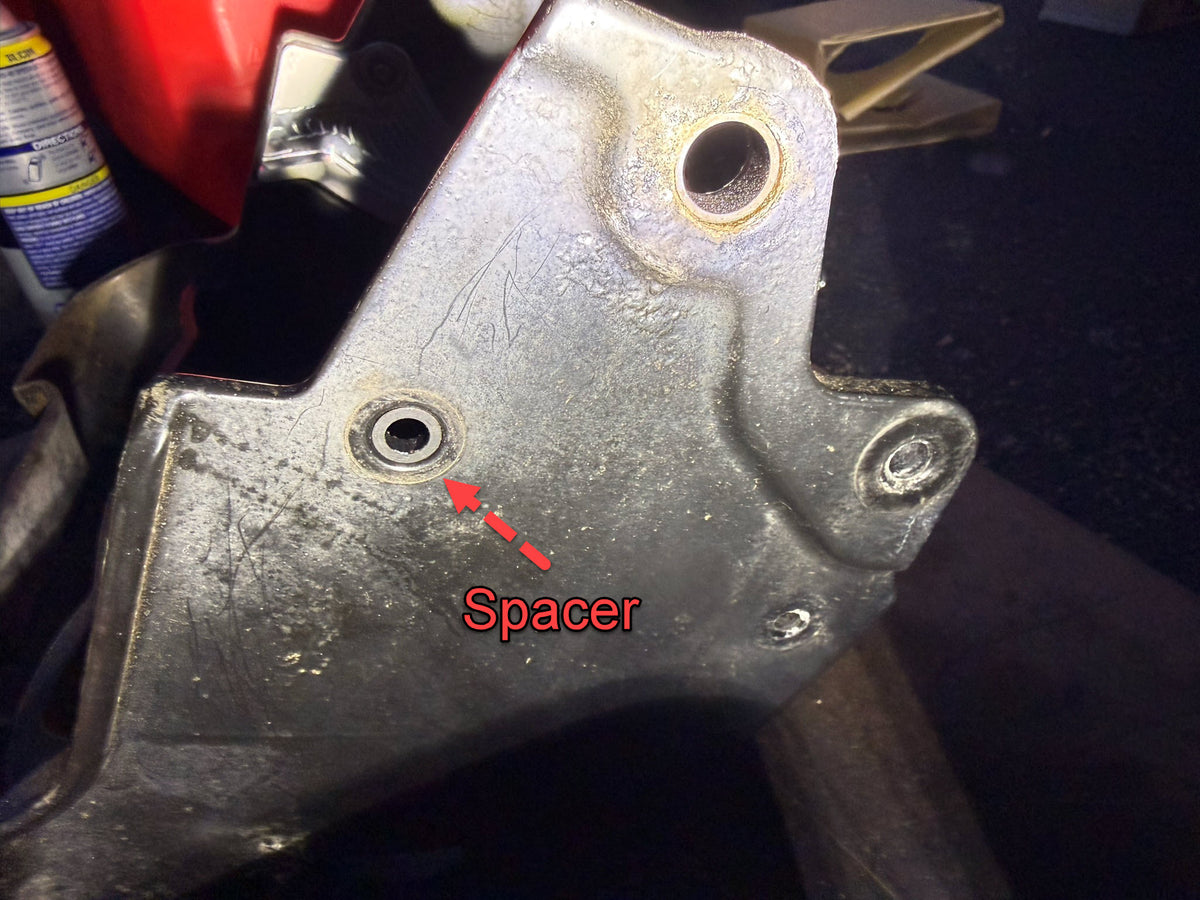

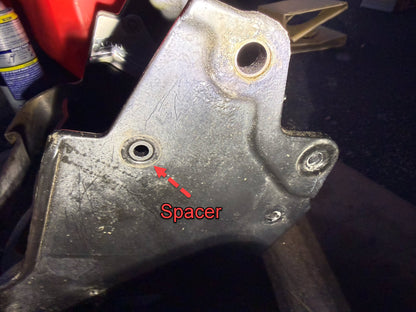

• Use a spacer on each side to ensure the ramp is centered and install ramps using factory bolt and lock nut.

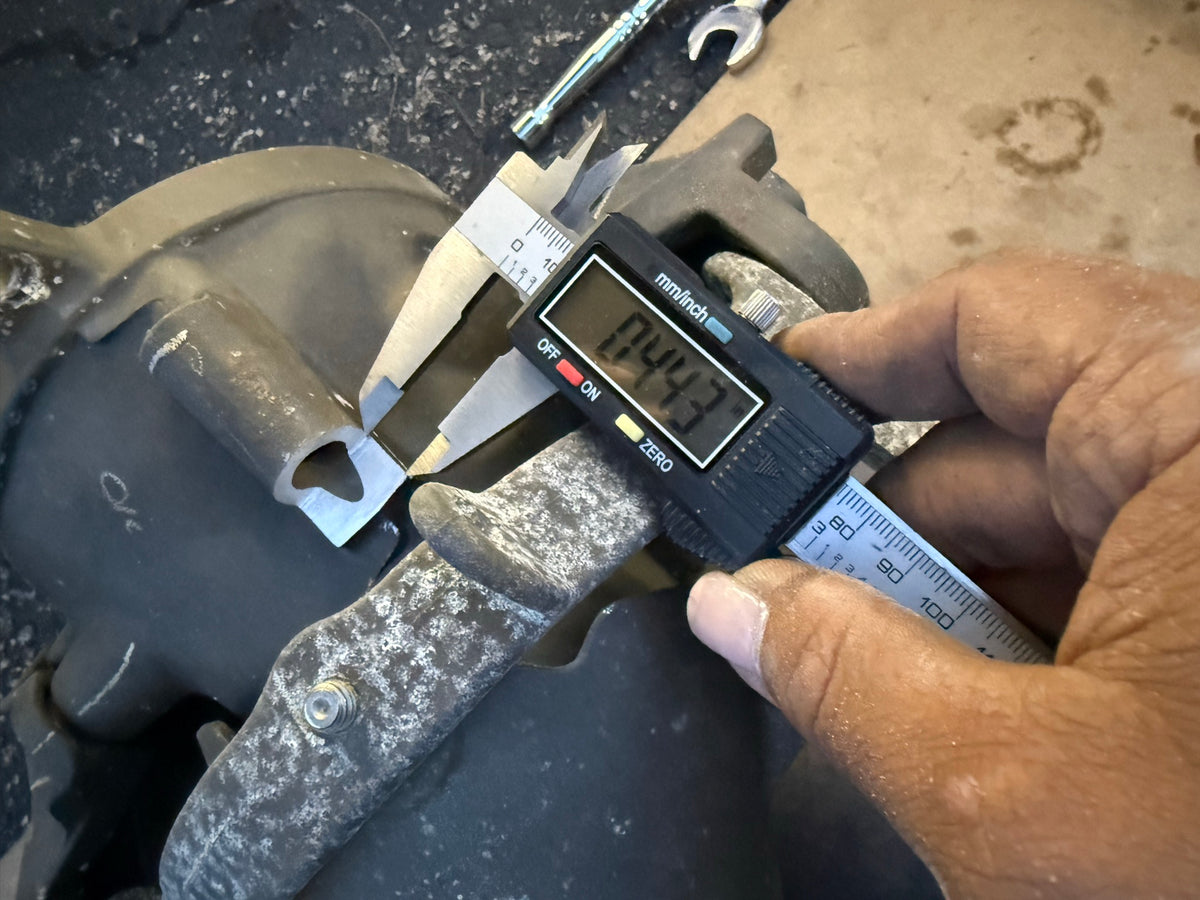

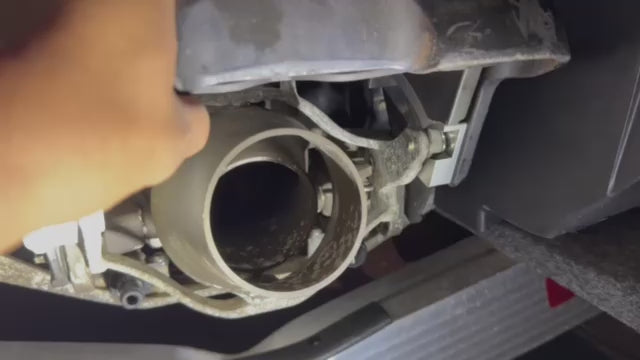

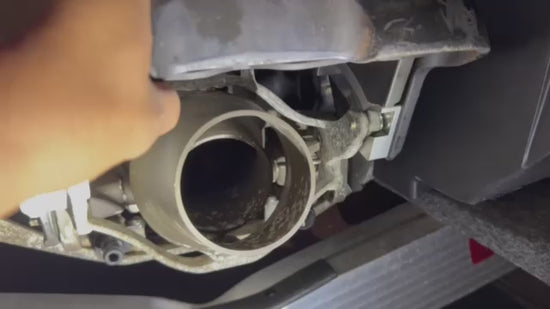

• You will need to either mod by removing approx. 1/4" off (I did .45" on mine) the venturi bilge exit on your existing venturi as shown in the photos or use a 2017+ venturi (Make sure to check photos that it's milled/cut correctly - I purchased what I was told was a 2022 venturi and it was the same as the 2014-2016).
• Install Reverse Bucket using the 3 13mm bolts you removed earlier.
• I re-calibrated the VTS on mine via CANdoo just in case.
  *** When I added VTS - It was not enabled, I was able to contact CANDoo and they were able to remote and enable this option for me along with the depth finder. ***

Kit Contains:

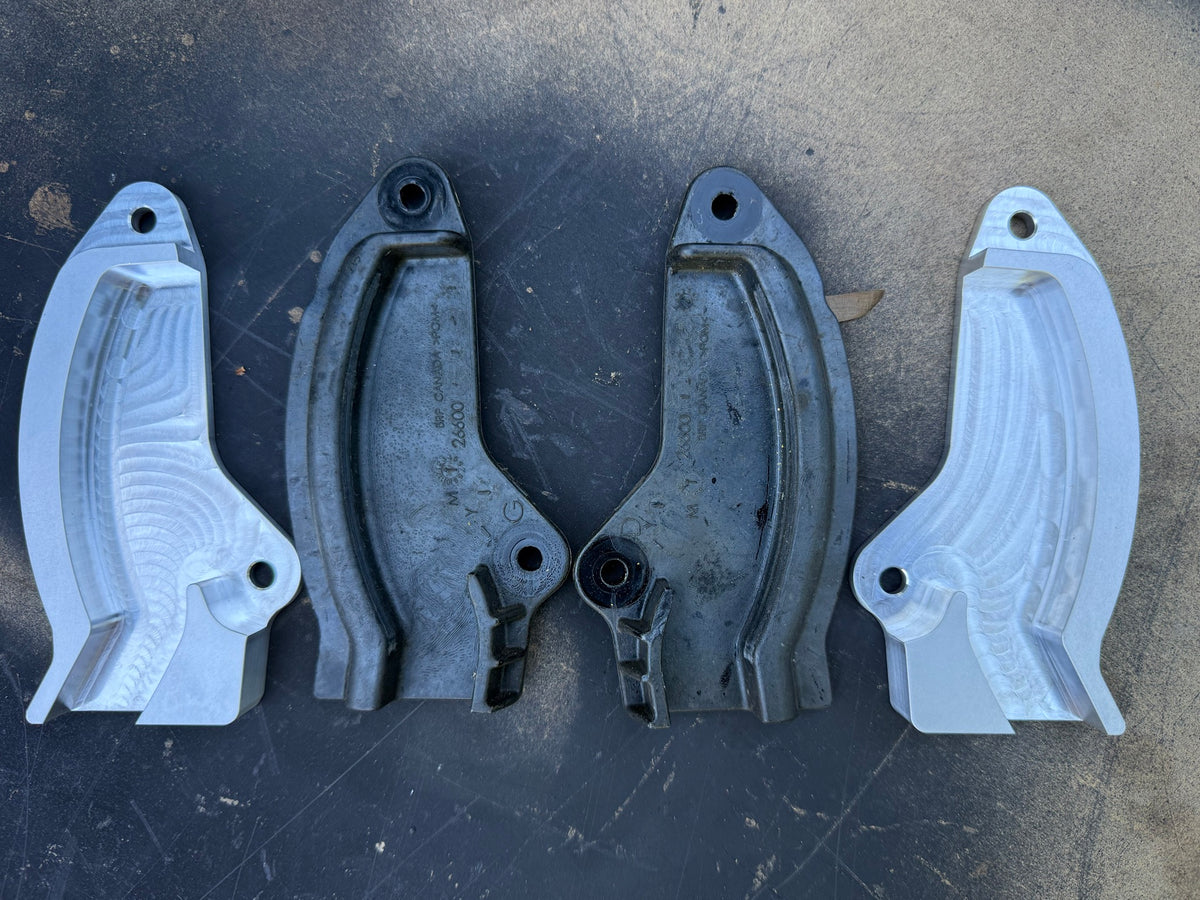

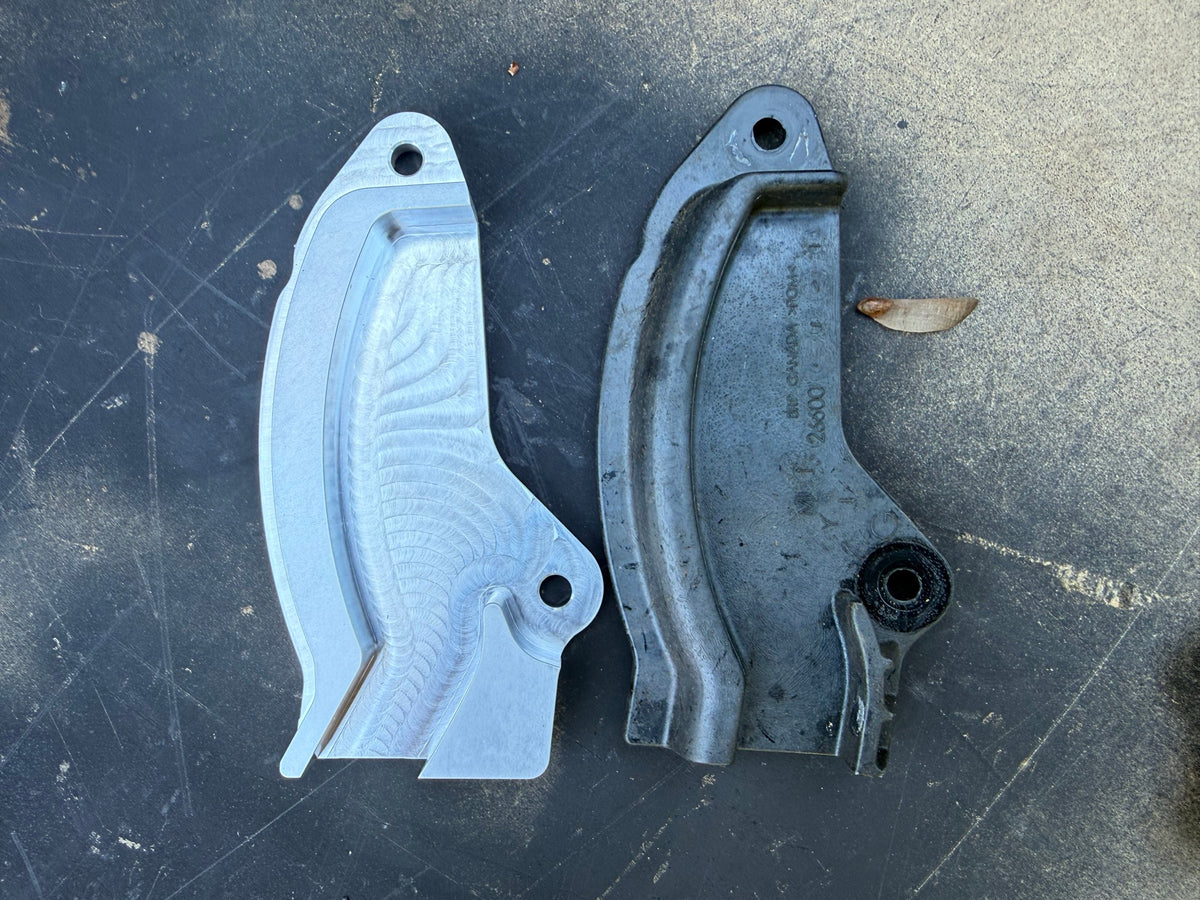

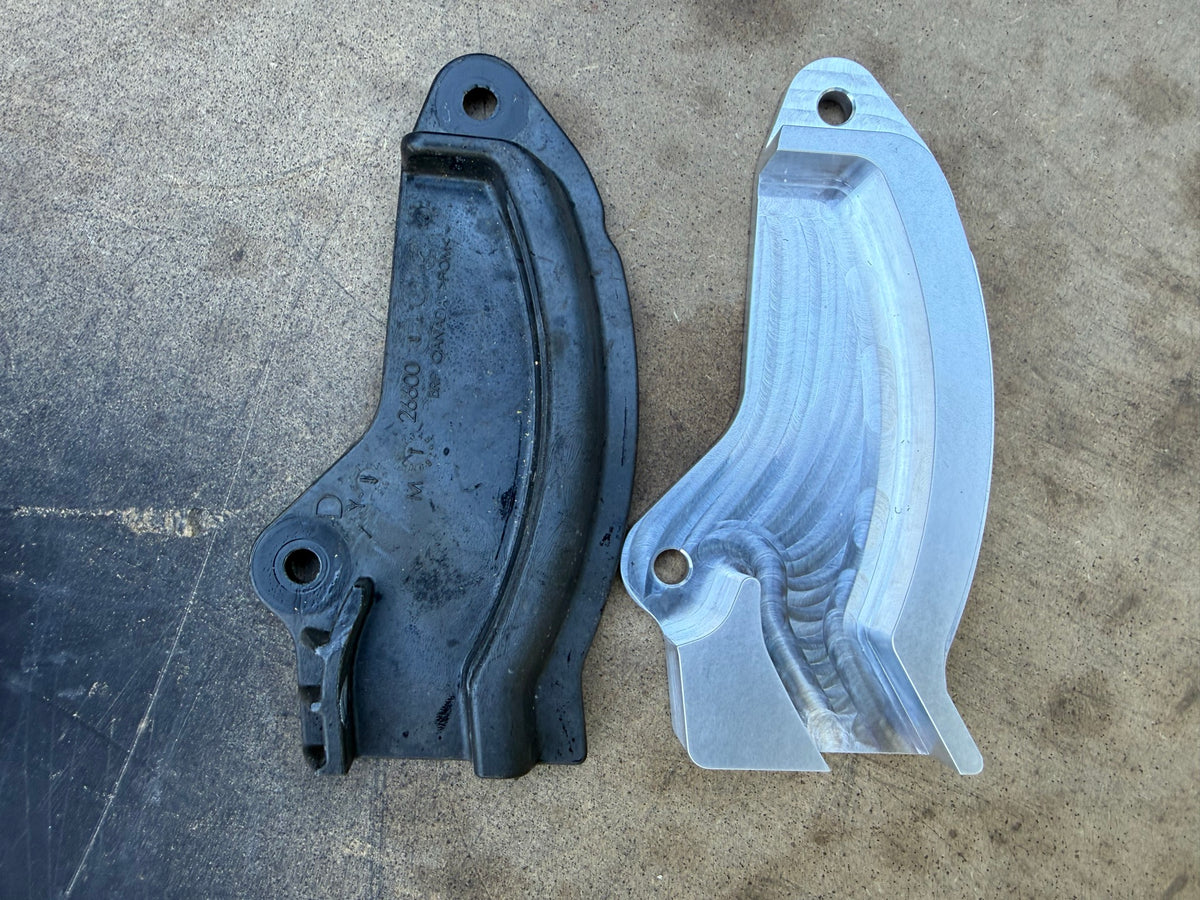

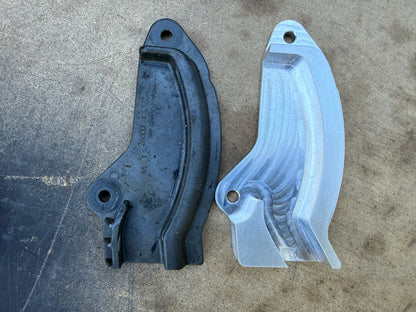

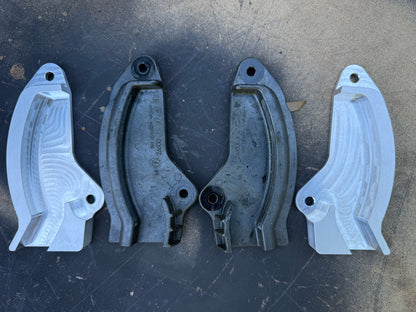

2x Ramp Guides - Left Hand and Right Hand
2x Ramp Guide Spacers

** Accepting Pre-Orders Now 9/18/2026 - Only 50 sets will be available on for this limited Run. Estimated Ship Date is November 6th **
