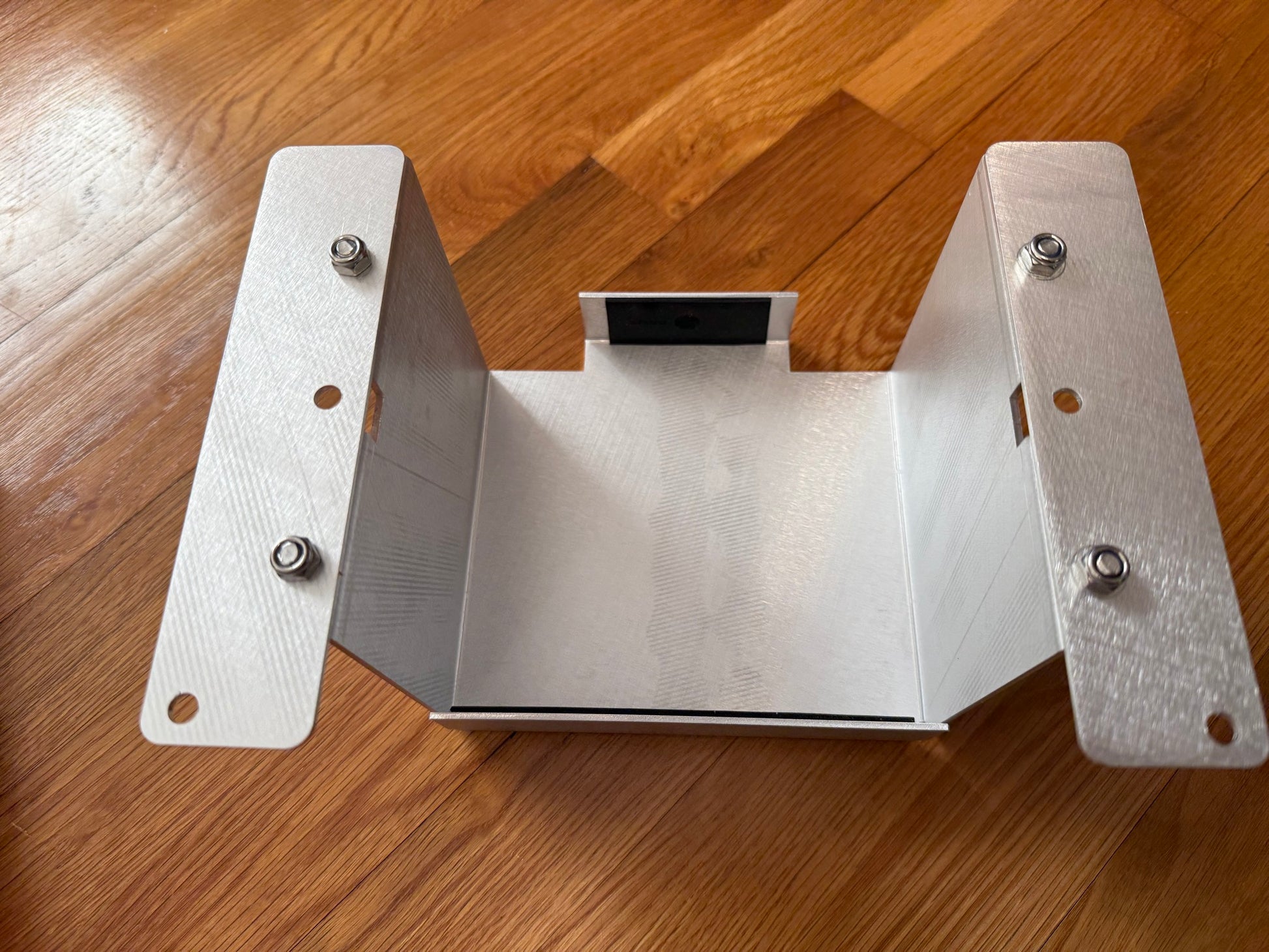

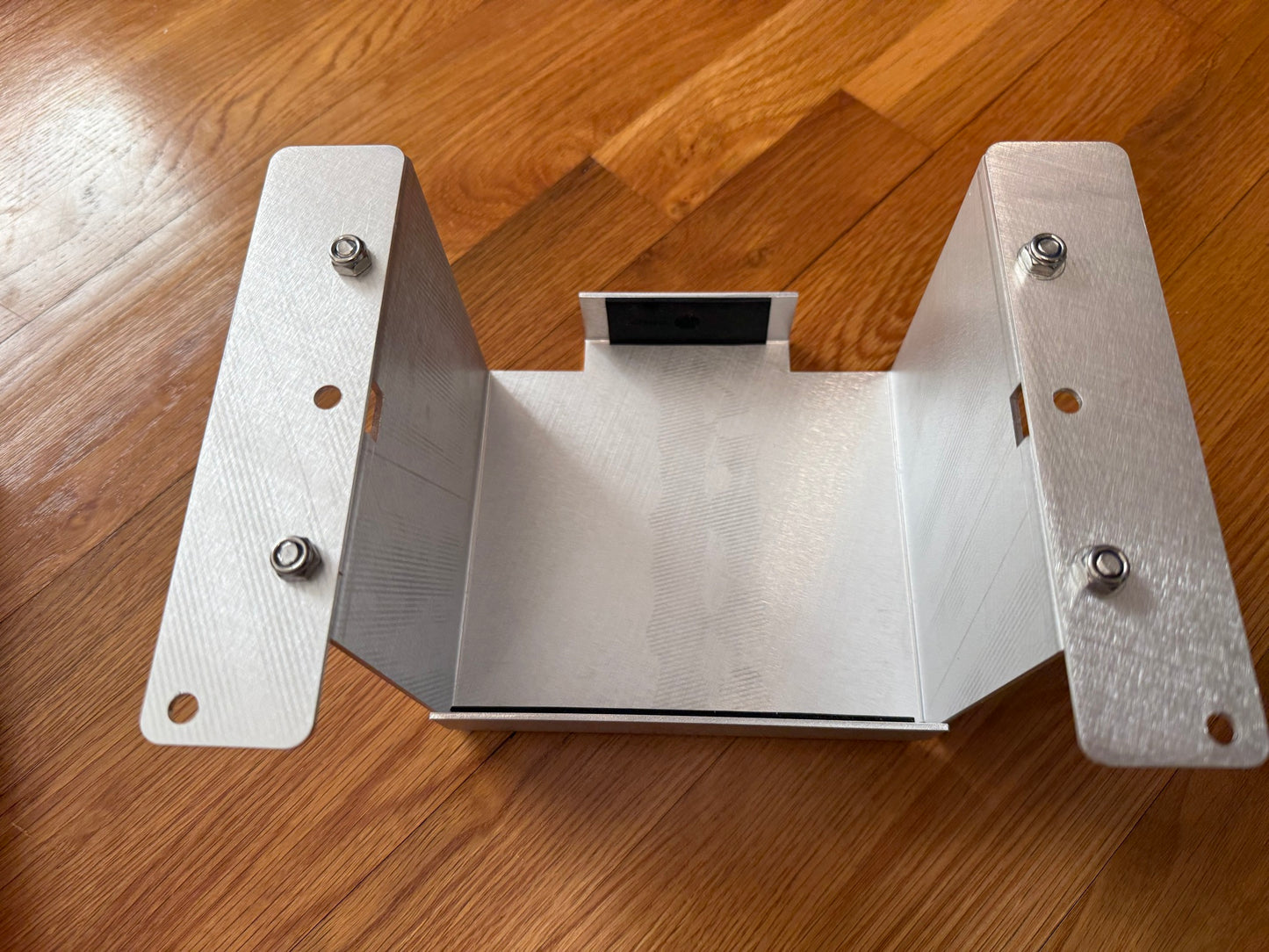

2nd Battery Bracket for Seadoo Fishpro Sport, ST3 Hull

This 2nd battery bracket will allow you to add a second larger battery. This was designed for the Fishpro Sport that uses the ST3 hull and may fit other models such as the GTX, RXT-X, Wake Pro 230, Explorer Pro.

Made in the USA from 5053 Aluminum and designed secure to factory mounting locations on the underside of the deck.

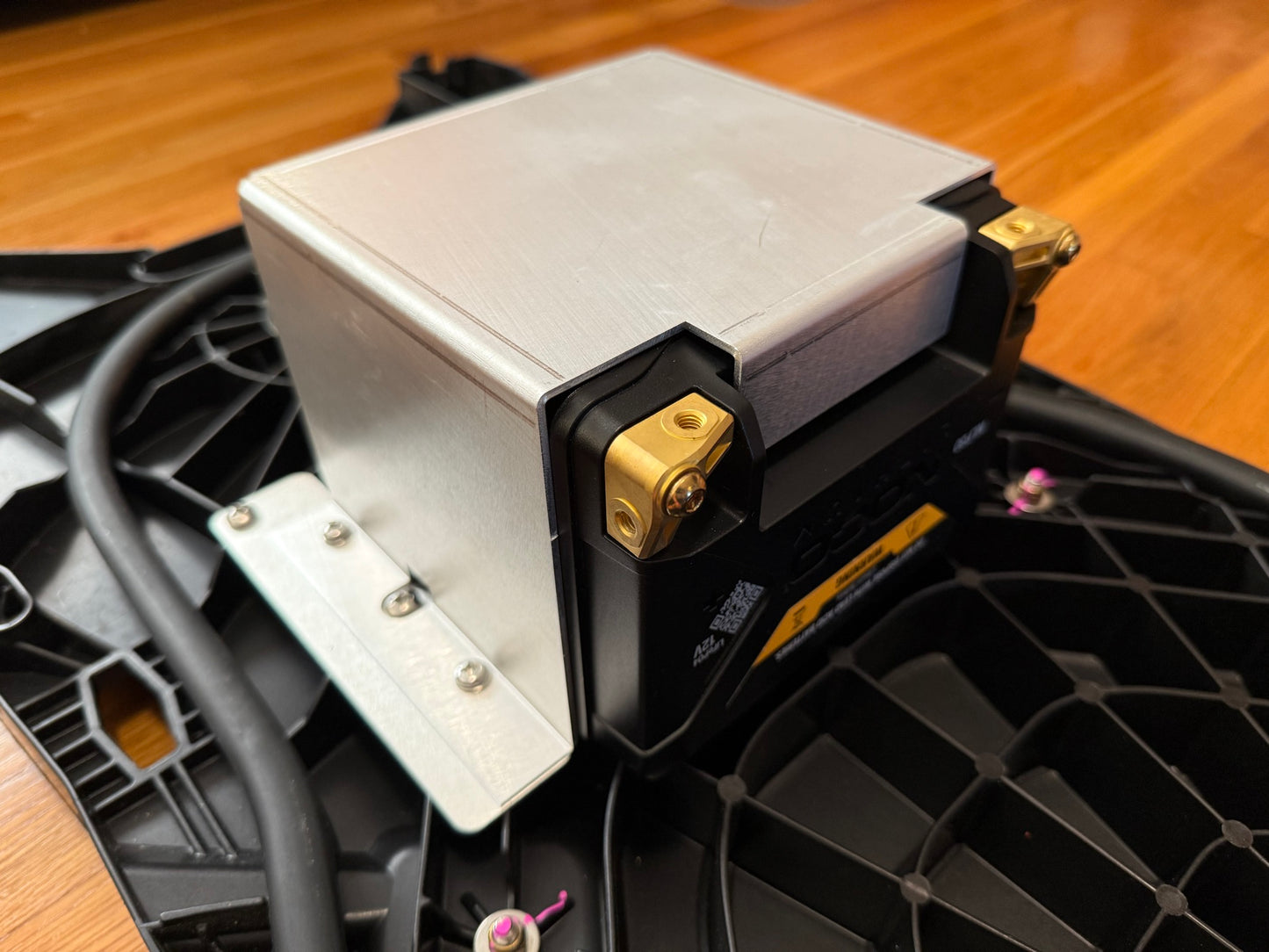

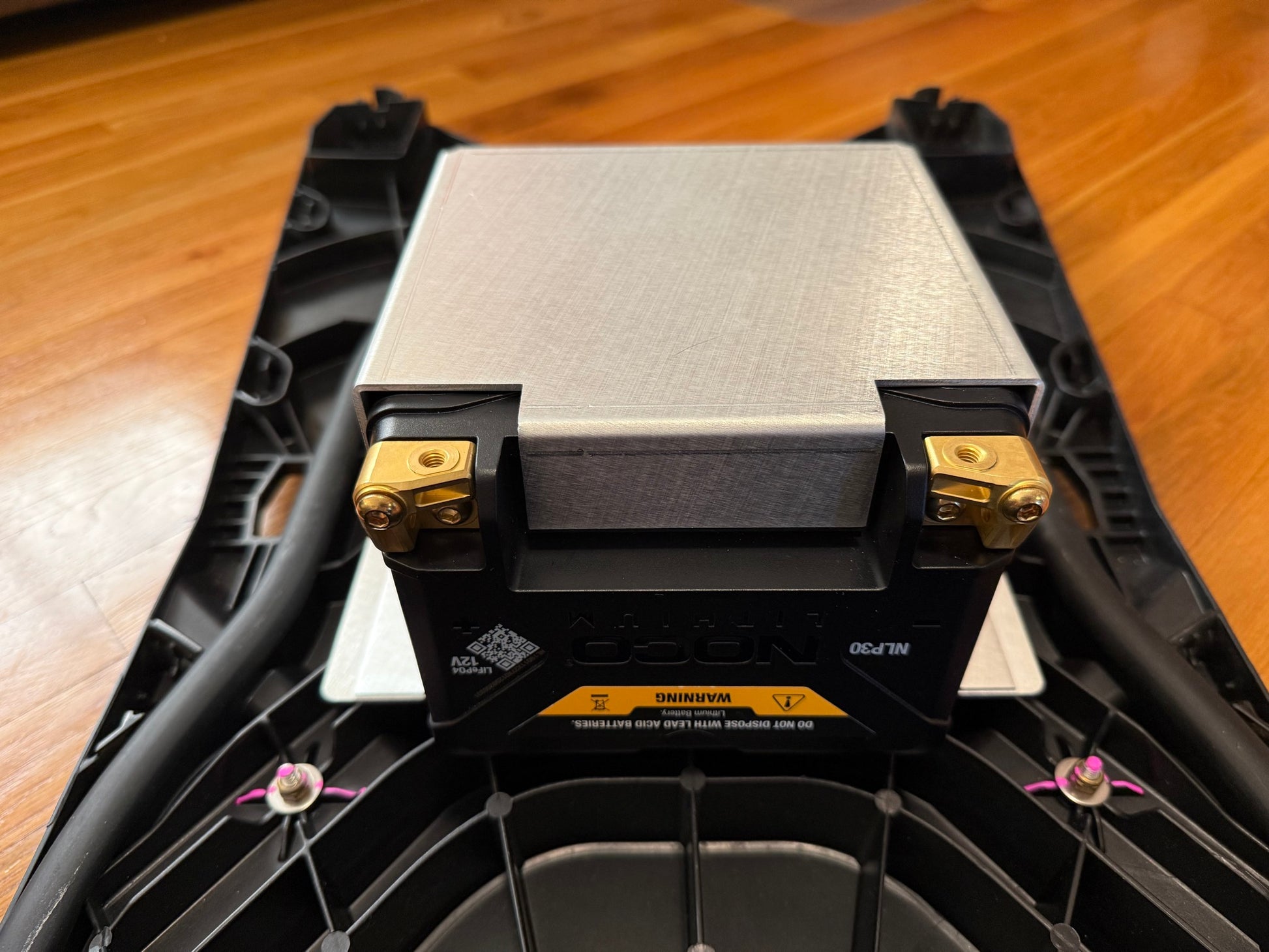

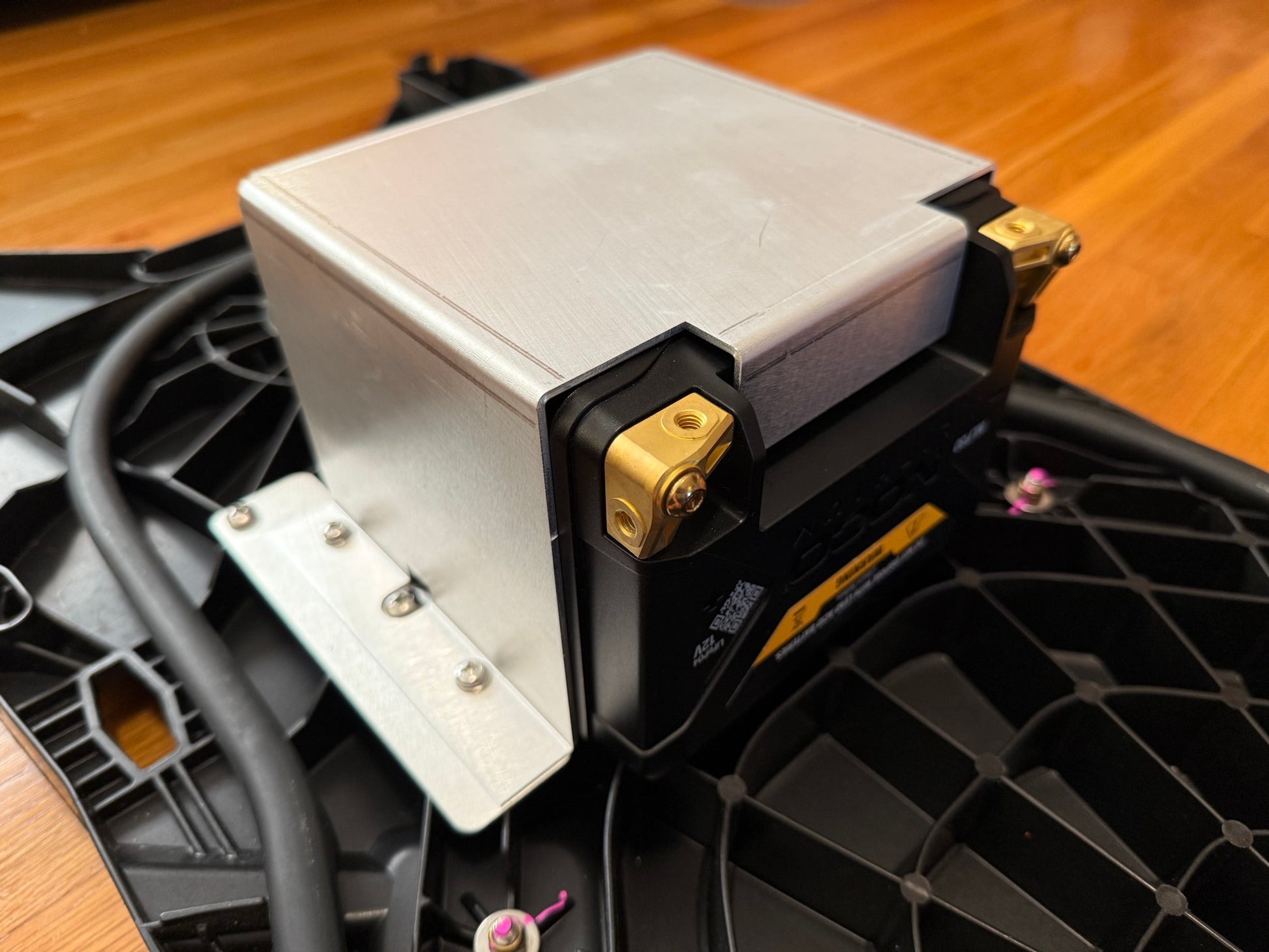

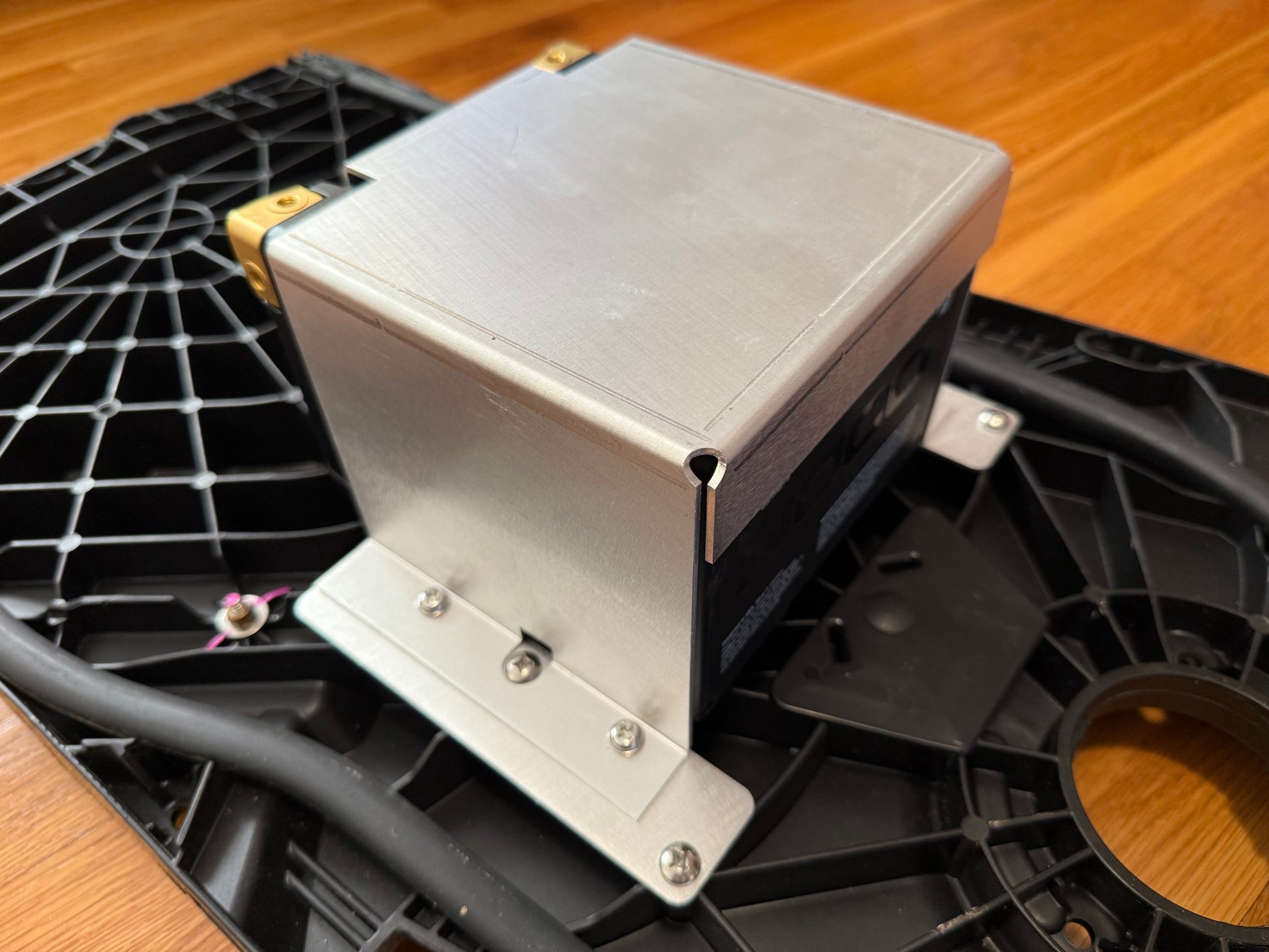

My personal setup - NOCO NLP30 with NOCO Genius GEN5X2

One side of battery from bottom to between the power terminals must 6-5/16" or less in order to fit inside the bracket.

Common Similar Sized Batteries

MBTX30U 6.54" (166mm) L x 4.96" (126mm) W x 6.89" (175mm) H
YIX30L 6.54" (166mm) L x 4.96" (126mm) W x 6.89" (175mm) H
YTX30L-BS 6.54" (166mm) L x 4.96" (126mm) W x 6.89" (175mm) H
NLP30 6.54" (166mm) L x 4.96" (126mm) W x 6.89" (175mm) H - Confirmed to Fit
CYLA30LXTA 6.54" (166mm) L x 4.92" (125mm) W x 6.89" (175mm) H

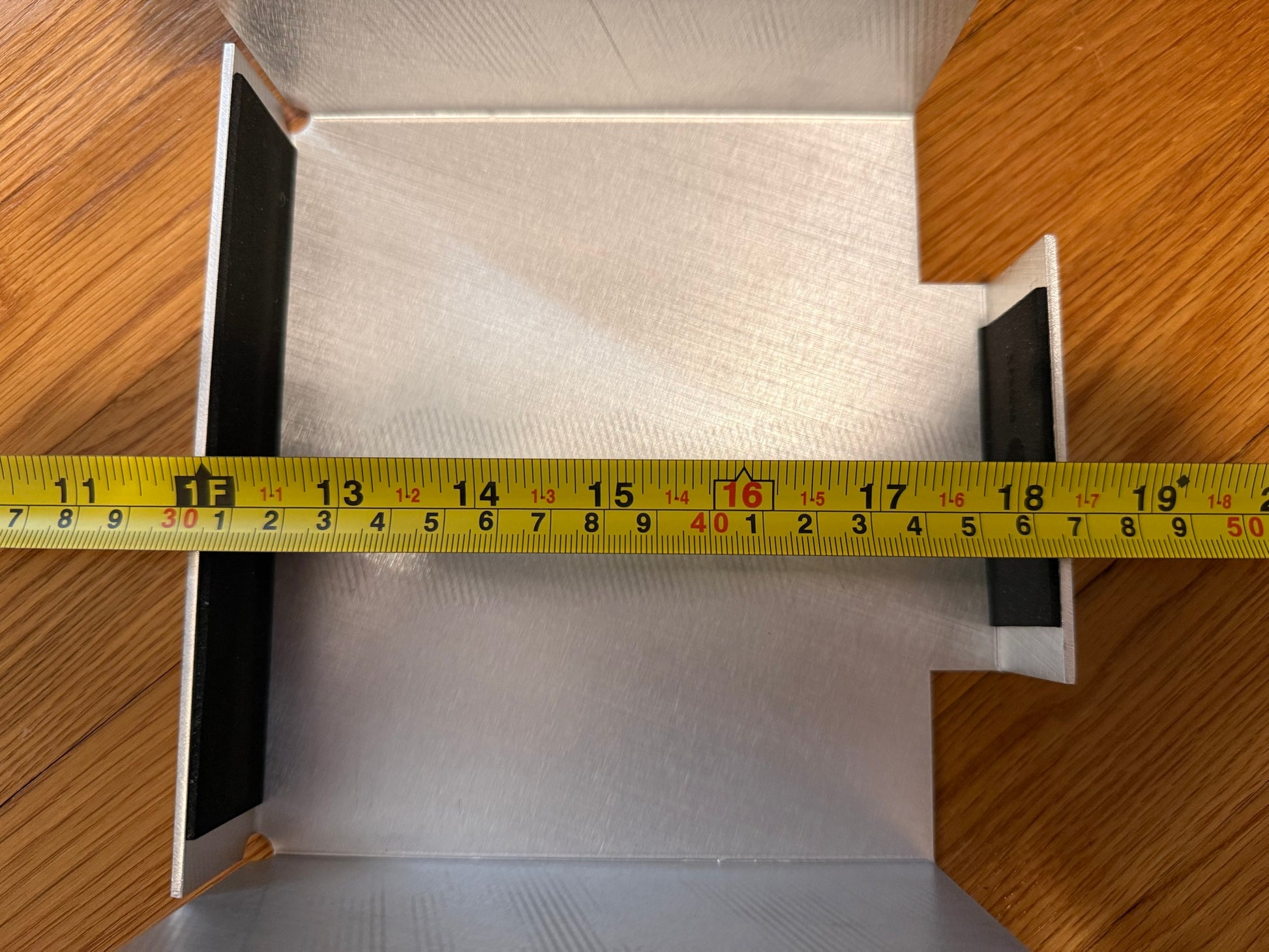

Dimensions 6.69" (170mm) L x 5.11" (130mm) H - Foam is 2mm thick.

Included Hardware

4 - 316 Stainless 6mm Screws, Washers and Lock Nuts
4 - 316 Stainless Trilobe Screws
2 - Foam Stripes
1 - Foam Pad

Installation Instructions

1. Assemble the side supports onto the battery bracket using the 4 - 6mm screws, washers and locking nuts.
2. Attach the provided foam stripes.
3. Insert the battery into the battery bracket.

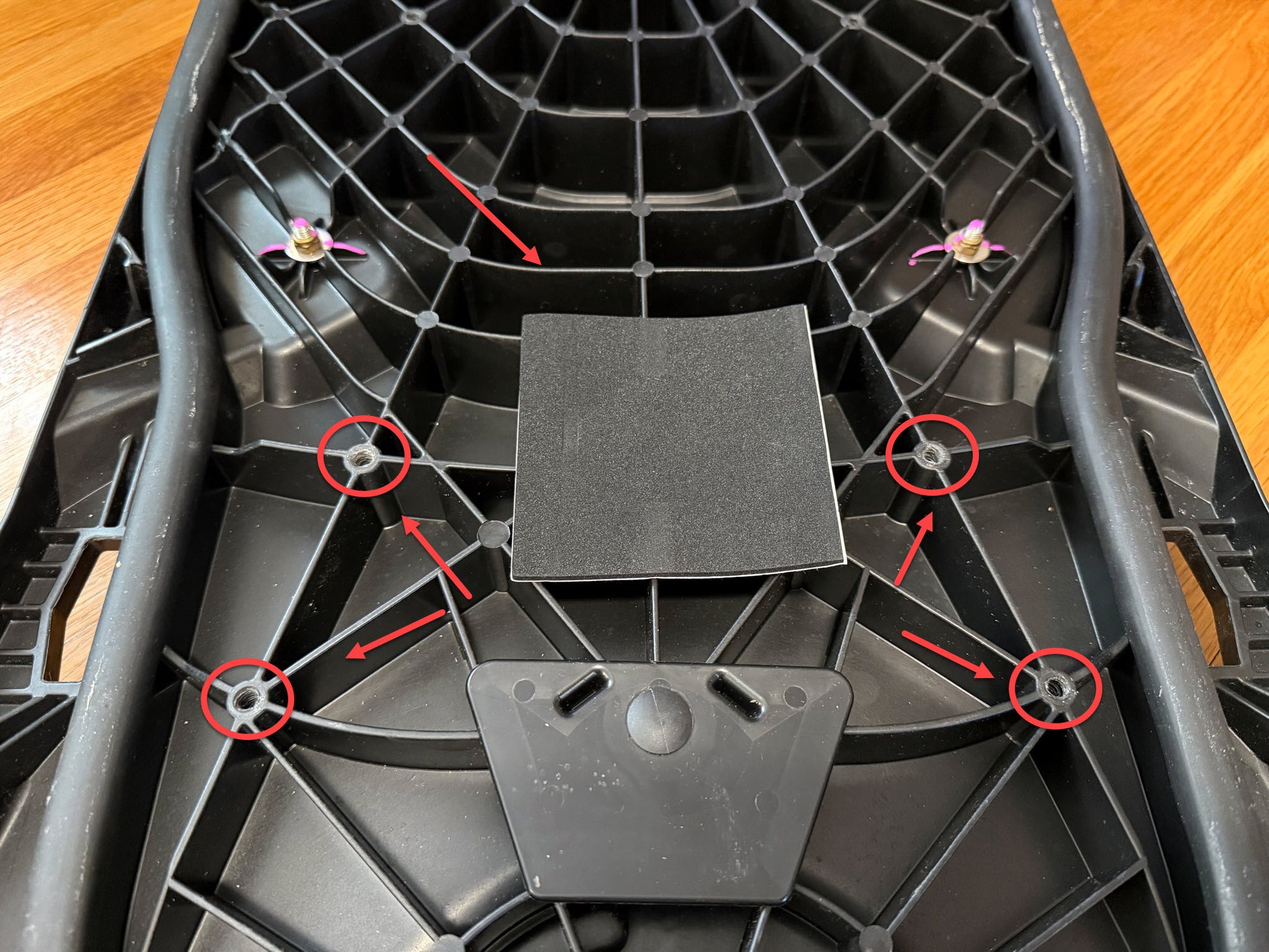

4. Place the foam pad on the deck and set the battery and bracket on top.
5. Line up the holes with the factory mounting locations and attach using the 4 - Trilobe screws.
